Specification
|
Standard Units
|
U.S. Units
|
|---|---|---|
|
Performance Parameter
|
||
|
Rated Load
|
700kg
|
1543.24 lbs
|
|
Maximum Speed
|
12 km/h
|
7.46 MPH
|
|
Hydraulic Flow
|
62.5 L/min
|
16.51 gallons/min
|
|
Tire Type
|
10-16.5
|
10-16.5 (no conversion)
|
|
Rated Power
|
37 kW
|
49.6 hp
|
|
Fuel Tank Capacity
|
70 L
|
18.49 gallons
|
|
Operating Weight
|
2700 kg
|
5952.48 lbs
|
|
Bucket Volume
|
0.4 m³
|
14.13 cubic feet
|
|
Dimension Parameter
|
||
|
Maximum Operating Height
|
3980 mm
|
156.69 inches
|
|
Bucket Pin Height
|
3080 mm
|
121.26 inches
|
|
Cab Ceiling Height
|
2140 mm
|
84.25 inches
|
|
Bucket to its Bottom Maximum Height
|
2913 mm
|
114.69 inches
|
|
No Bucket Total Length
|
2640 mm
|
103.94 inches
|
|
Total Length with Bucket
|
3420 mm
|
134.65 inches
|
|
Maximum Height Unloading Angle
|
40 mm
|
1.57 inches
|
|
Discharge Height
|
2380 mm
|
93.70 inches
|
|
Unloading Distance
|
700 mm
|
27.6 inches
|
|
Bucket Reversal Angle at Ground Level
|
30 mm
|
1.18 inches
|
|
Bucket Tipping Angle at Maximum
|
104 mm
|
4.09 inches
|
|
Wheelbase (Standard Tire)
|
991 mm
|
39.02 inches
|
|
Ground Clearance
|
180 mm
|
7.09 inches
|
|
Angle of Departure
|
20°
|
20°
|
|
Turning Radius (Without Bucket)
|
1168 mm
|
45.98 inches
|
|
Forward Turning Radius
|
1958 mm
|
77.09 inches
|
|
Rear Turning Radius
|
1630 mm
|
64.17 inches
|
|
Tail Length
|
1108 mm
|
43.62 inches
|
|
Wheelbase (Standard Tire)
|
1450 mm
|
57.09 inches
|
|
Vehicle Width (Standard Tire)
|
1720 mm
|
67.72 inches
|
|
Standard Bucket Width
|
1740 mm
|
68.50 inches
|

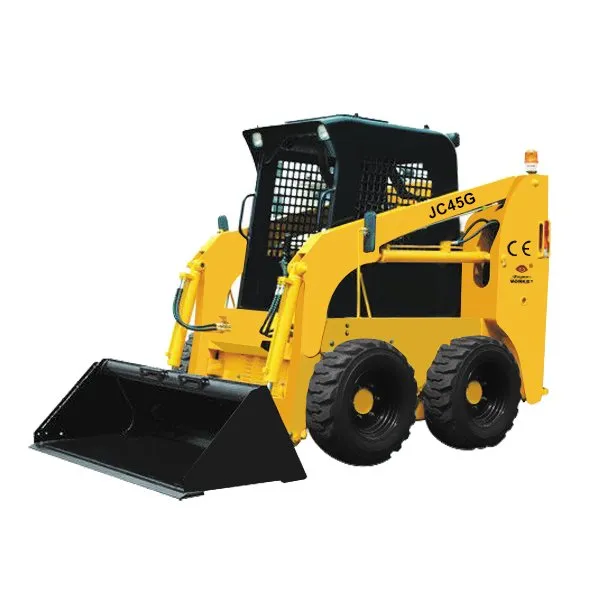

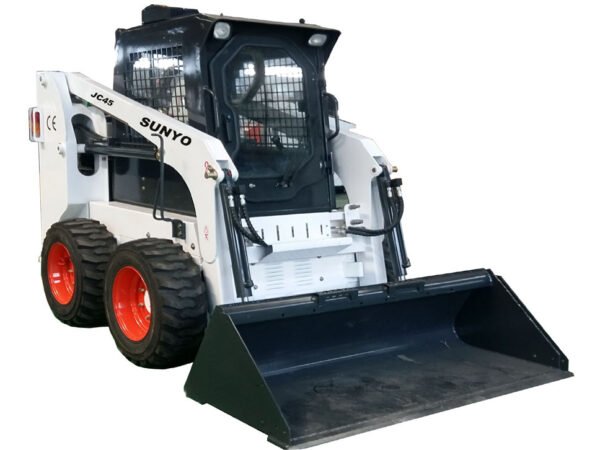

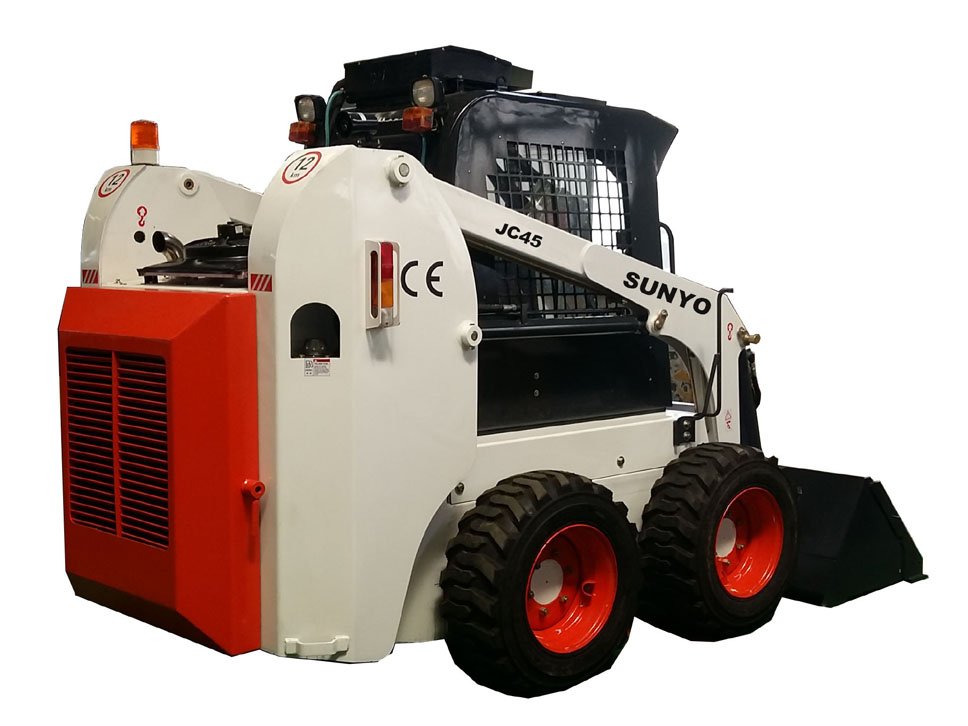

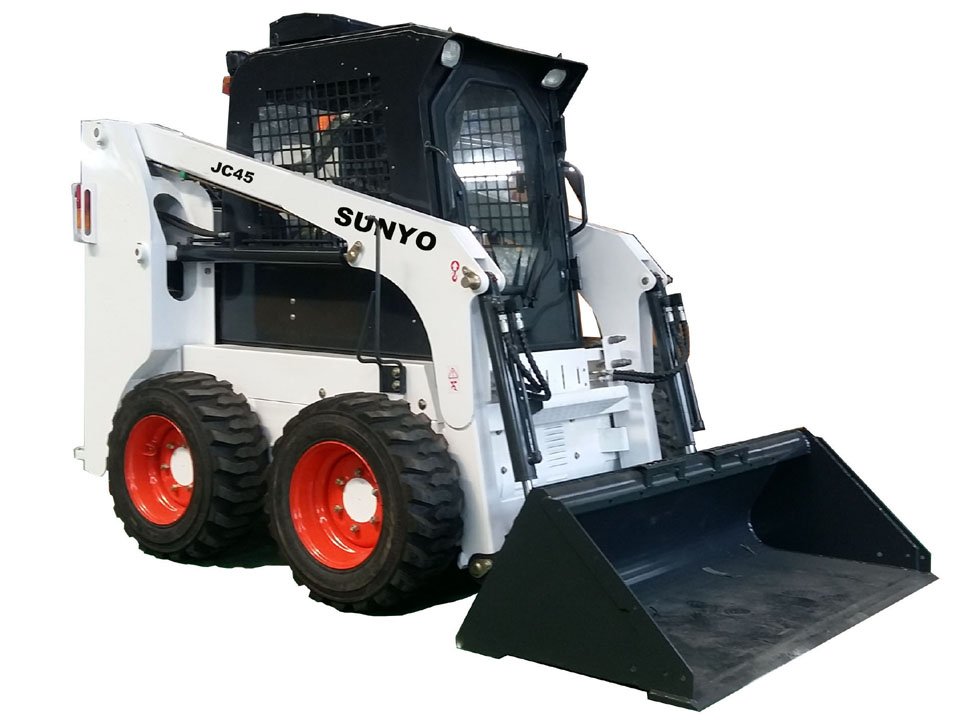

JC45 skid steer
€4,500.00
Specification Standard Units U.S. Units Performance Parameter Rated Load 700kg 1543.24 lbs Maximum Speed 12 km/h 7.46 MPH Hydraulic Flow 62.5 L/min 16.51 gallons/min Tire Type 10-16.5 10-16.5 (no conversion) Rated Power 37 kW 49.6 hp Fuel Tank Capacity 70 L 18.49 gallons Operating Weight 2700 kg 5952.48 lbs Bucket Volume 0.4 m³ 14.13 cubic […]
