Brand: Performance Automatic
Manufacturer’s Part Number: PASS45206
Part Type: Automatic Transmissions
Product Line: Performance Automatic Blue Chip Street Smart Transmission Systems
Summit Racing Part Number: PMA-PASS45206
Number of Gears: 4
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Automatic
Transmission Advertised Horsepower Rating: 650
Torque Converter Included: Yes
Flexplate Included: No
Transmission Controller Included: Yes
Wiring Harness Included: Yes
Transmission Cooler Included: No
Advertised Flash Stall Rating: 2,200-2,400 rpm
Trans-Brake Included: No
Lockup Compatible: Yes
Transmission Pan Style: Stock
Transmission Pan Material: Steel
Transmission Pan Finish: Natural
Input Spline Quantity: 35
First Gear Ratio (Automatic Transmissions): 2.84
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Black
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: Yes
Remanufactured: Yes
Quantity: Sold as a kit.
Notes: Designed for Ford small block Windsor applications. Recommended for applications with 650 hp or less. The included transmission pan is a stock-type steel pan. Package includes the Smart Shift electronic transmission controller and wiring harness.

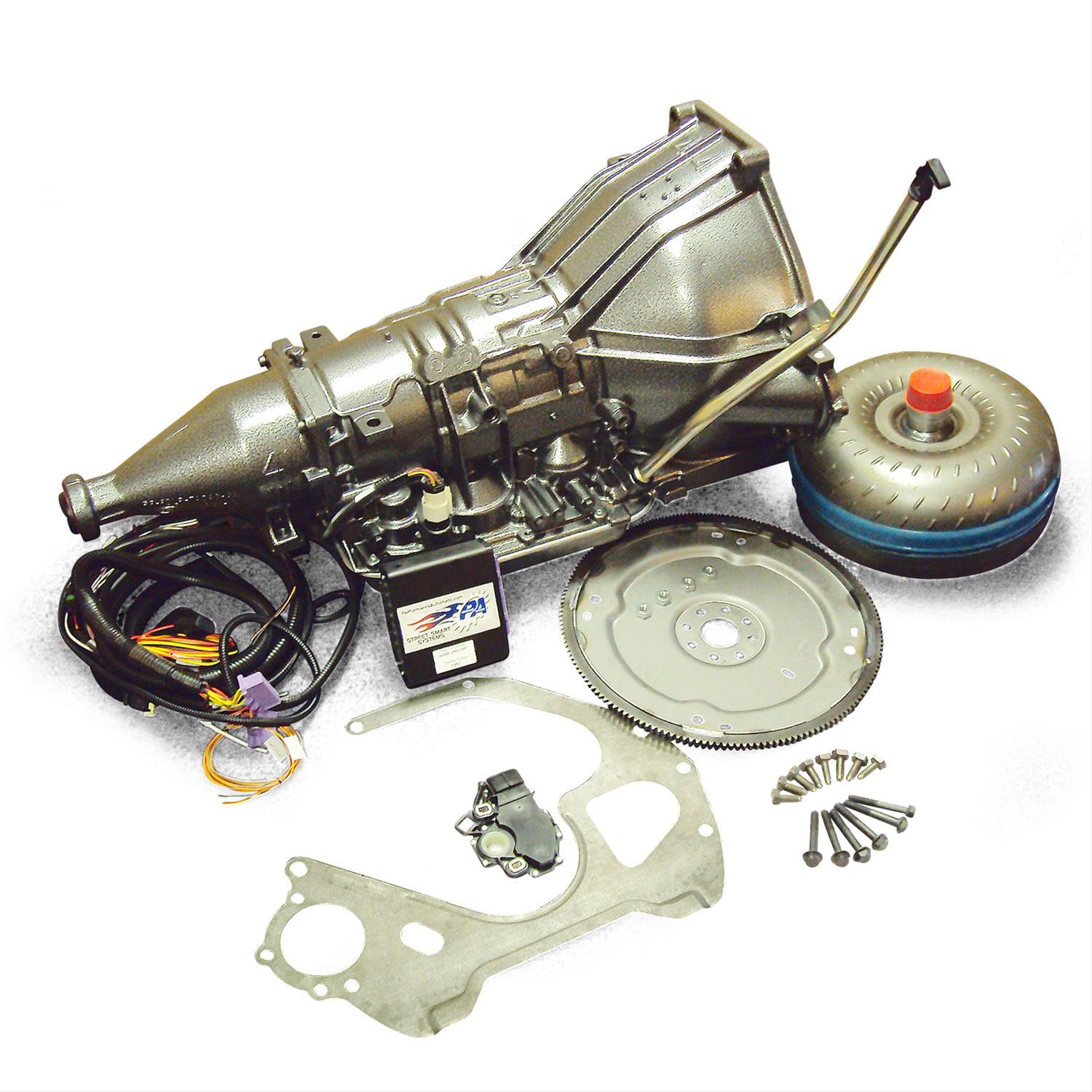

Performance Automatic Blue Chip Street Smart transmission systems are specifically designed for Ford’s Coyote, 572 big block, 2.0L, 2.3L, and 3.5L EcoBoost crate engines, as well as the Ford modular, FE, and small block engines. Rated to handle up to 850 hp, they come complete and ready for a simple bolt-in installation. All components are matched to your specific engine and guaranteed to perform beyond your expectations.
* Ford’s 4R70W electronically controlled overdrive transmission with many upgrades and internal modifications
* Custom-built, engine specific torque converter
* Updated Smart Shift controller and wiring harness with bump shift/paddle shifter capabilities and full throttle, non-torque managed shifts
* New design bellhousing for the 2.0L, 2.3L, 3.5L, FE, and big block engines
* Hardware and components needed for installation
* 3-year limited warranty
