- 2025
- Kubota
- Compact Excavators

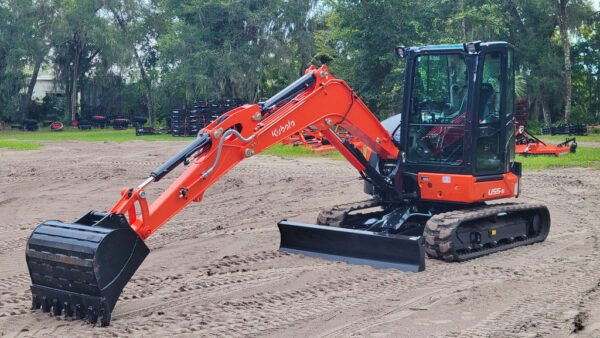

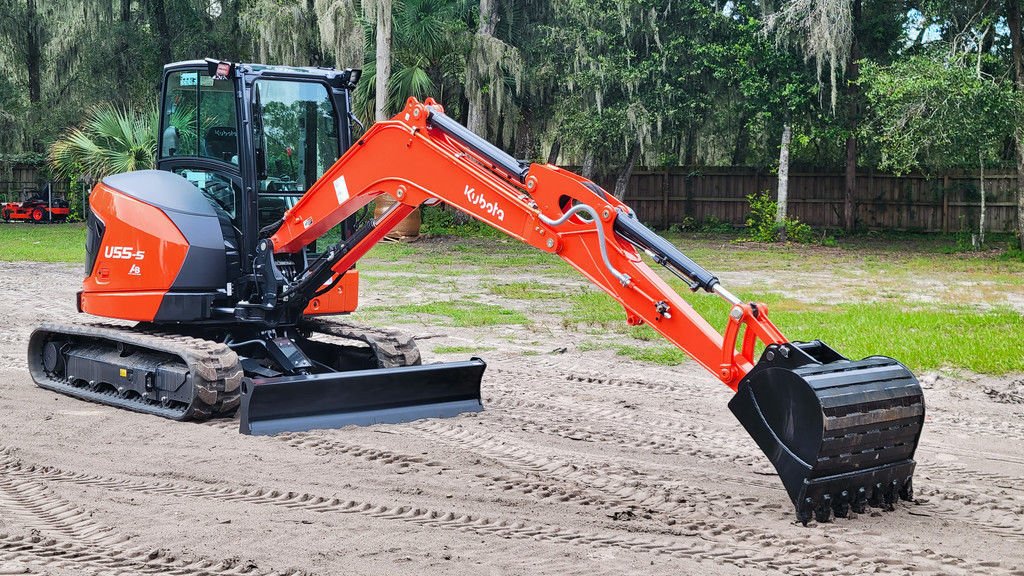

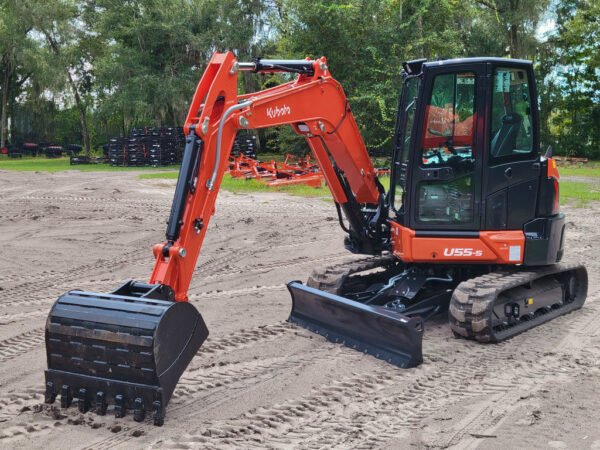

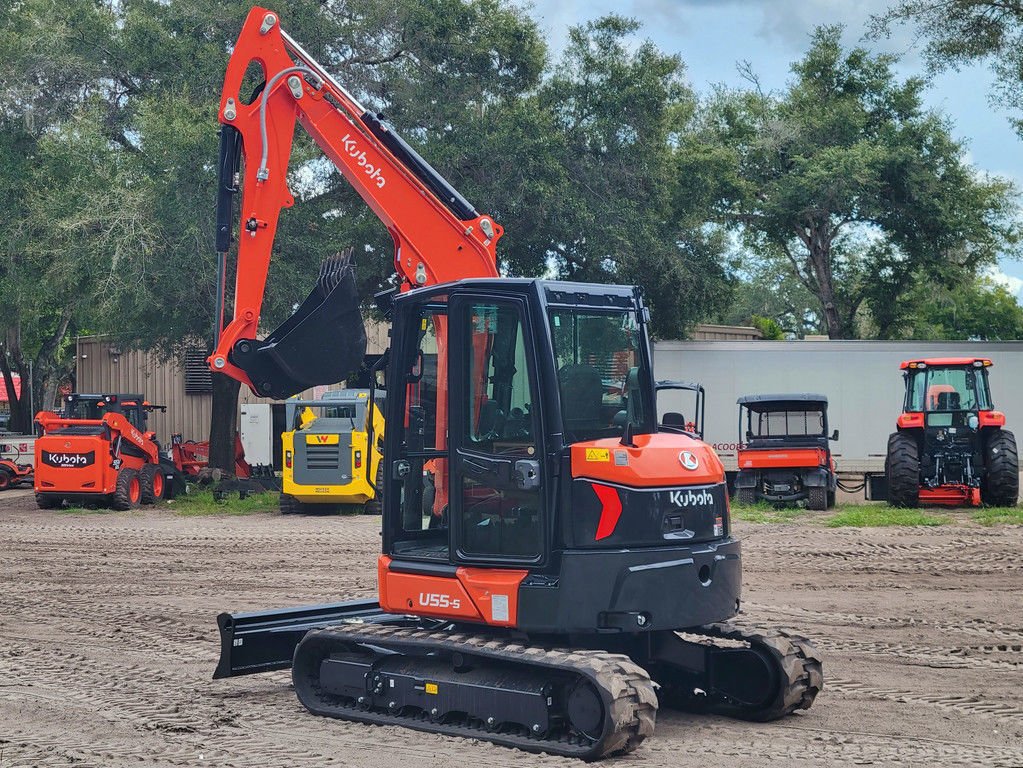

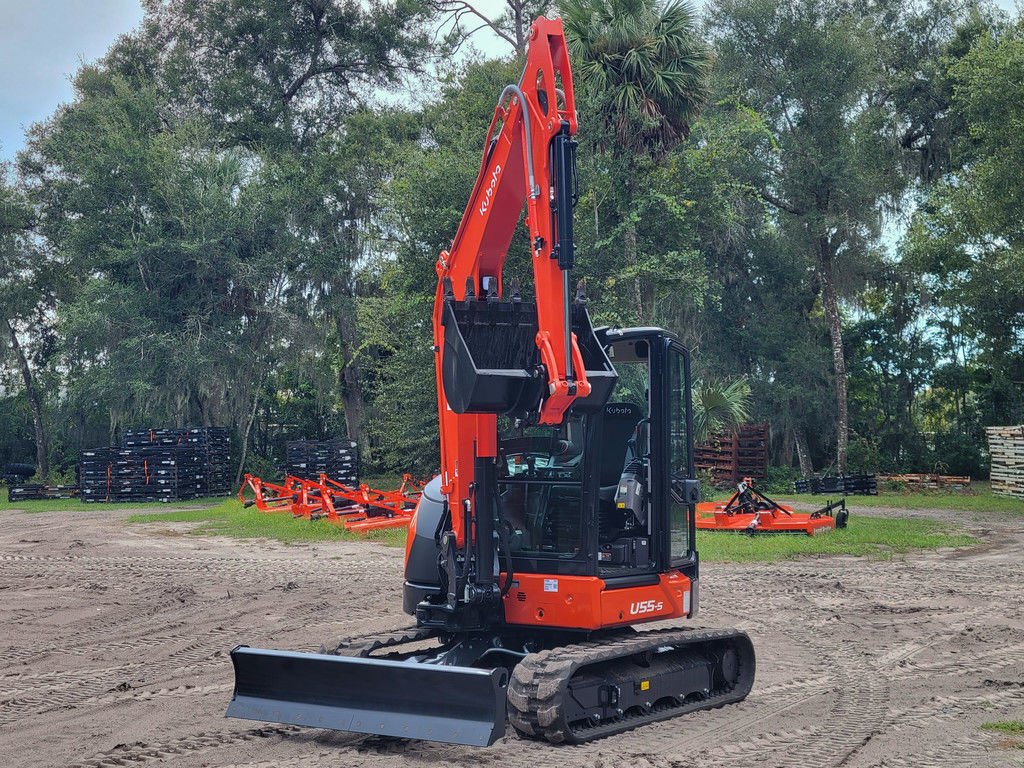

- U55-5
- Compact
- V2607-CR-E5
- Kubota
- 47.6 HP (kW) /rpm
- 159.6 cu. in. (cc)
- Traveling Speed High: 3.0 (4.9) mph (km/h) | Traveling Speed Low: 1.7 (2.8) mph (kph)
- Bucket Breakout Force: 9304 (4220) lbs (kgf) | Arm Breakout Force: 5304 (2406) lbs (kgf)
- 3.8 (0.27) kgf (cm2)
- 14.8 (56.1) Variable x 2 / 9.8 (37.0) Gear x 1 GPM (LPM) | Auxiliary Hydraulics Flow Rate: 17.2 (65.0) / 9.8 (37) GPM (LPM)

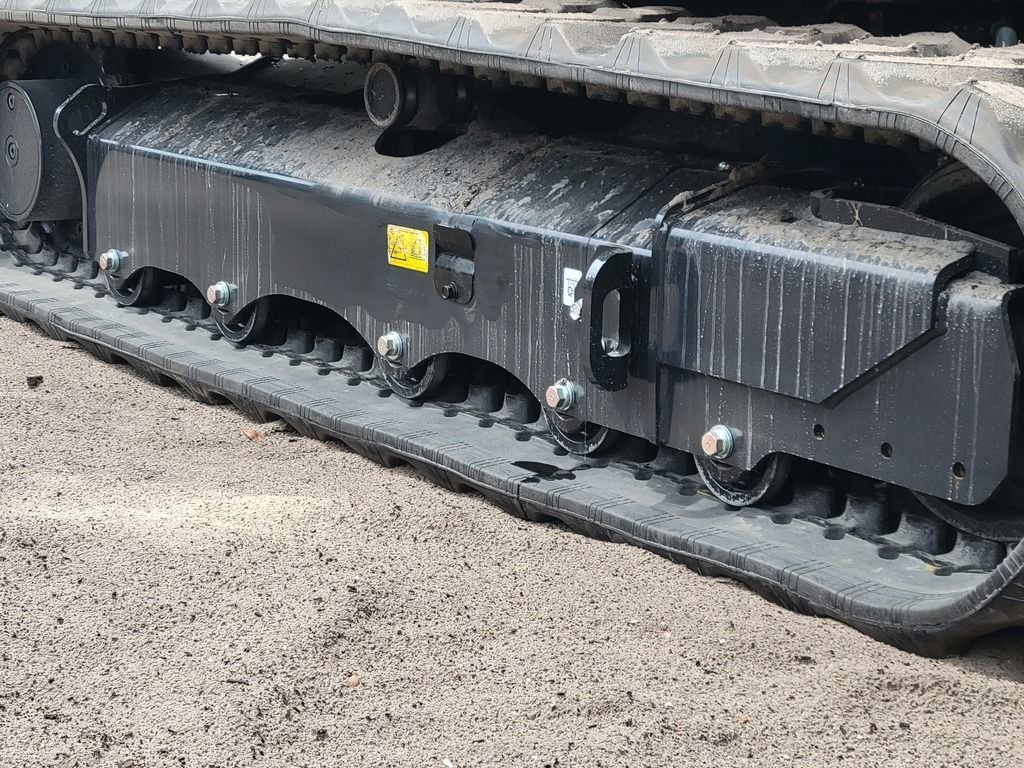

- Crawler: 8ft 2in (2500) in. (mm)
- Blade: 5 ft 6.9 in (1700) ft (mm)
- Blade: 13.5 in (343), Angle Blade: 1 ft 3.2 in (385) in. (mm)
- 17ft 1in (5435) in. (mm)
- 8ft in (2550) in. (mm)
- 6ft 5in (1960) in. (mm)
- 12.2in (310) in. (mm)
- Reservoir 17.4 (66) gal (L)
- Reservoir / System: 11.1 (41.9) / 20.3 (77) gal (l)
- Rubber: 12247 (5555) / 12456 (5650), Angle blade rubber: 12721 (5770) / 12930 (5865), Angle blade steel: 13007 (5900) / 13217 (5995) lbs (kg)

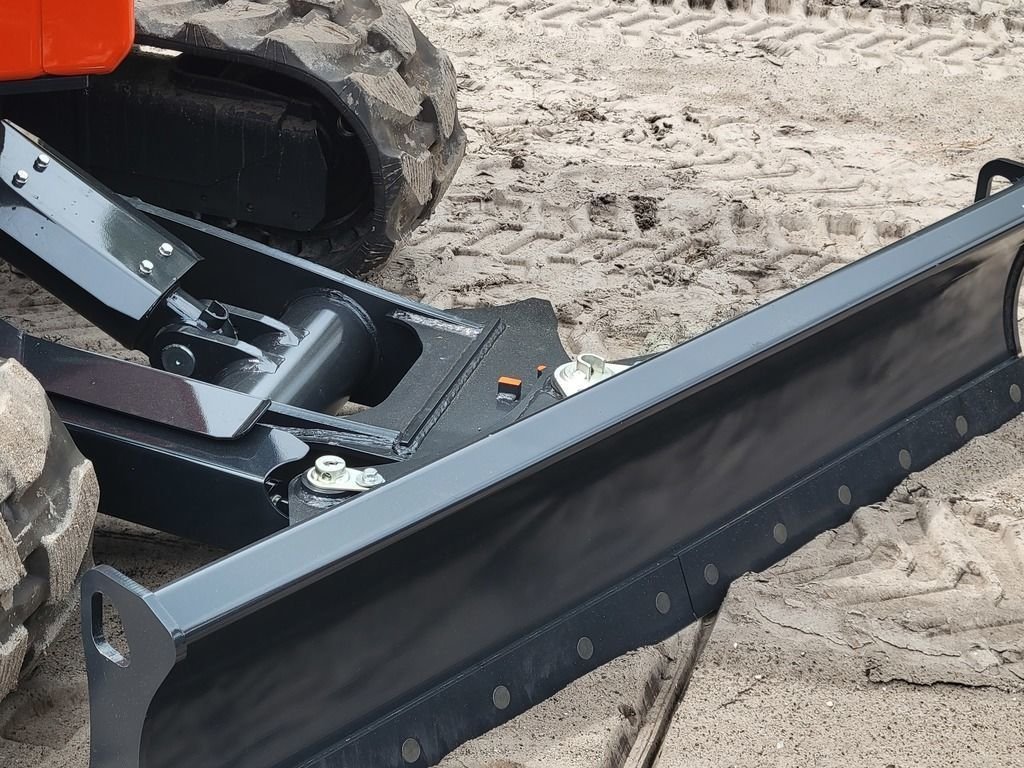

- Cab Angle Blade

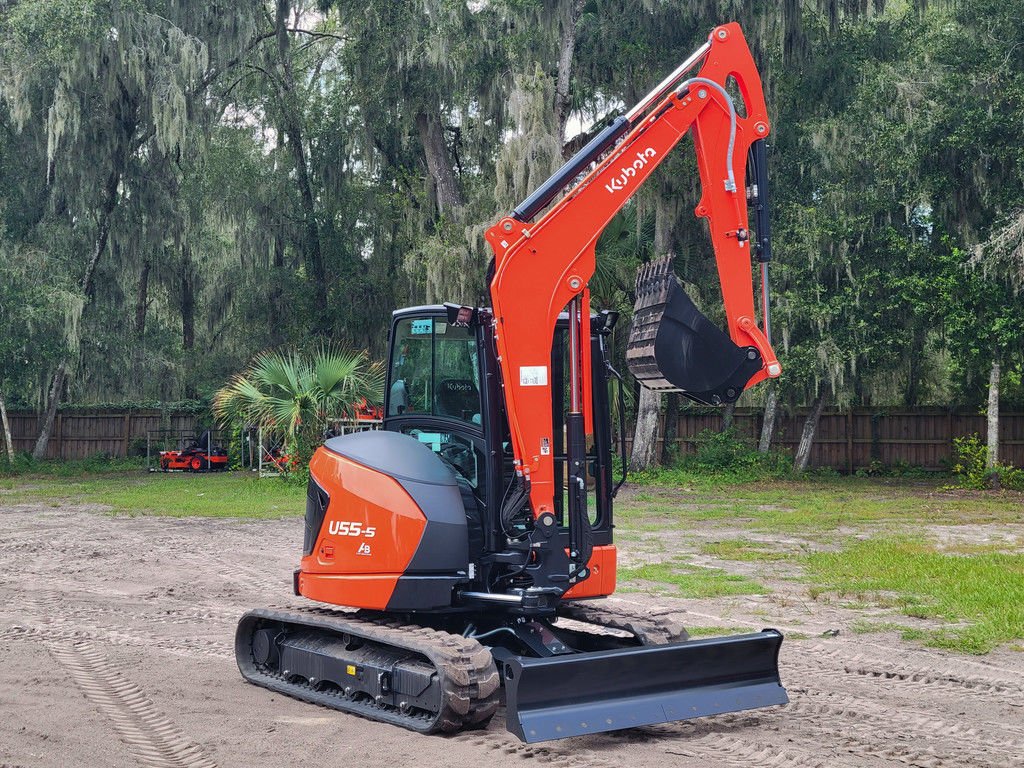

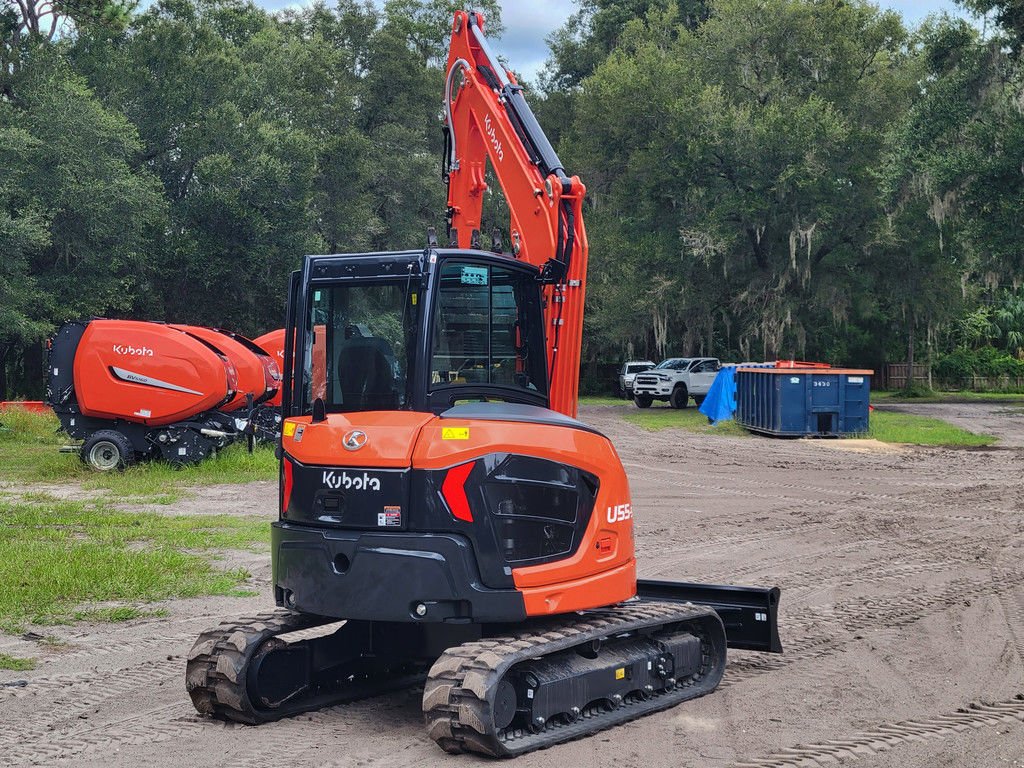

The right equipment makes all the difference, and you’ll find that difference you’re searching for with the Kubota U55-5. Advanced hydraulics, outstanding dig and dump capability and a whopping 47.6 horsepower follow your every command, letting you get more done in a day’s work and start setting your sights on the next challenge.
Features may include:
- NEW – 7″ LCD Color Display with jog dial (Standard)
- NEW Keyless Start – start the excavator without the use of a manual key; no more losing or can’t find your keys; excavator will store up to (10) user passcodes to start the machine; anti theft tool (Dealer -Option)
- Rearview Camera – factory ready; dealer installed option; engage the rearview camera by pressing the ‘camera’ button on the right hand side key pad; screen will split with machine information on top and a clear view behind the excavator
- Automatic One Way Flow Hydraulic Return Line (3rd Line) – on the (-4) excavators the 3rd return line is engaged manually on the right side valve bank; the new feature is electronic and engaged through the display
- Dual Adjustable Seat & Console – allows the operator to find the perfect operating position in the cab

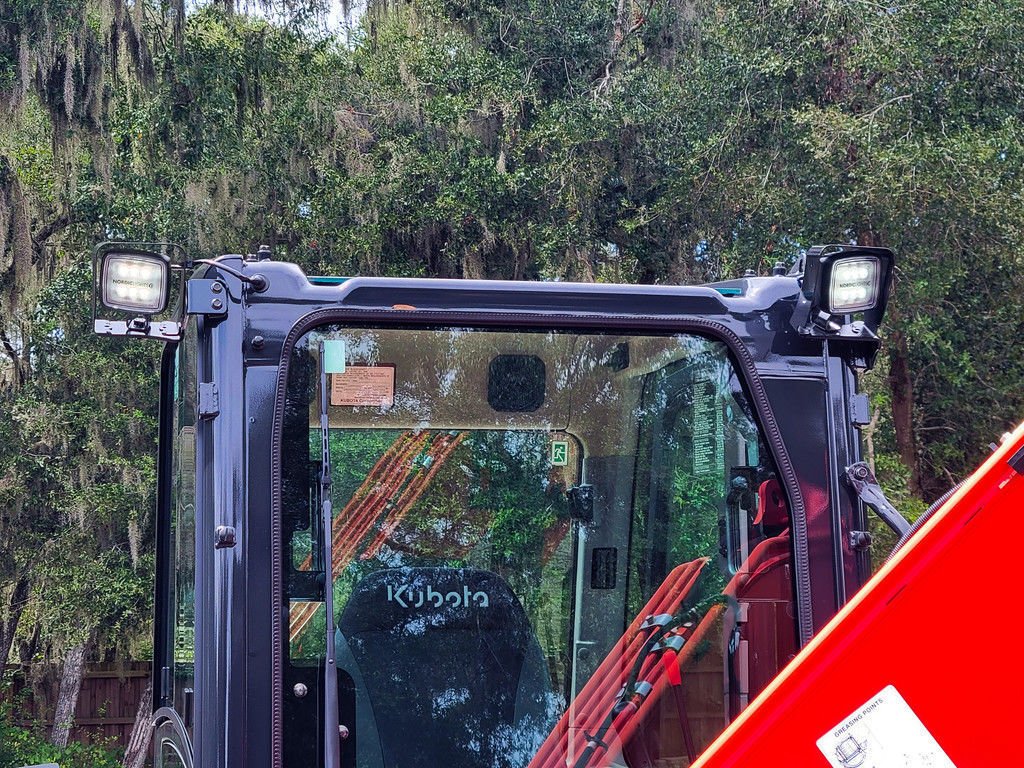

- LED Working Lights – standard feature; changed from Halogen lights to LED
- Improved AC System – improved from (5) air vents to, now, (7) air vents for quick cool down or heat defrost
CLEAN RUNNING KUBOTA TIER 4 ENGINE
Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.
TWO SPEED TRAVEL
All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.
CHANGEABLE CONTROL PATTERN
Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.
COMFORT & CONVENIENCE

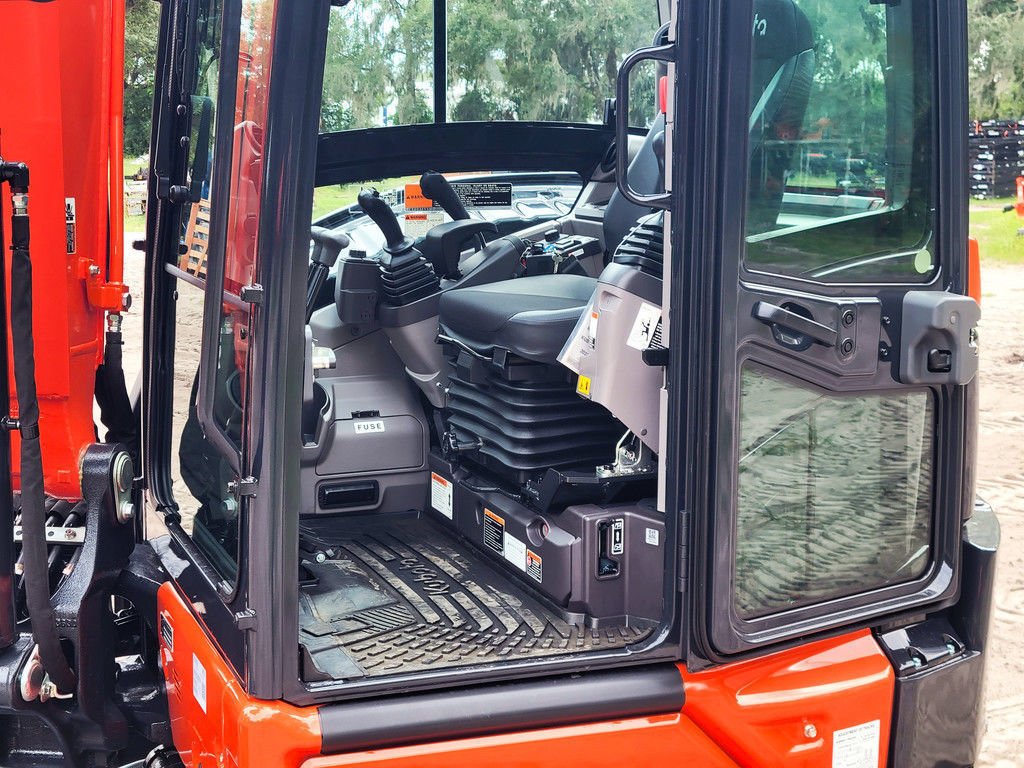

- A spacious operator station designed for greater comfort, with a fully flat floor for more legroom
- Digital panel with easy access, simple settings and easy-to-read indicators and alerts
- Easy cab entry and exit
- Easy-open front slide window
- Wrist rest
- Cup holder
SERVICEABILITY
- Front pin bushings to help maximize durability
- Centralized swivel bearing lubrication

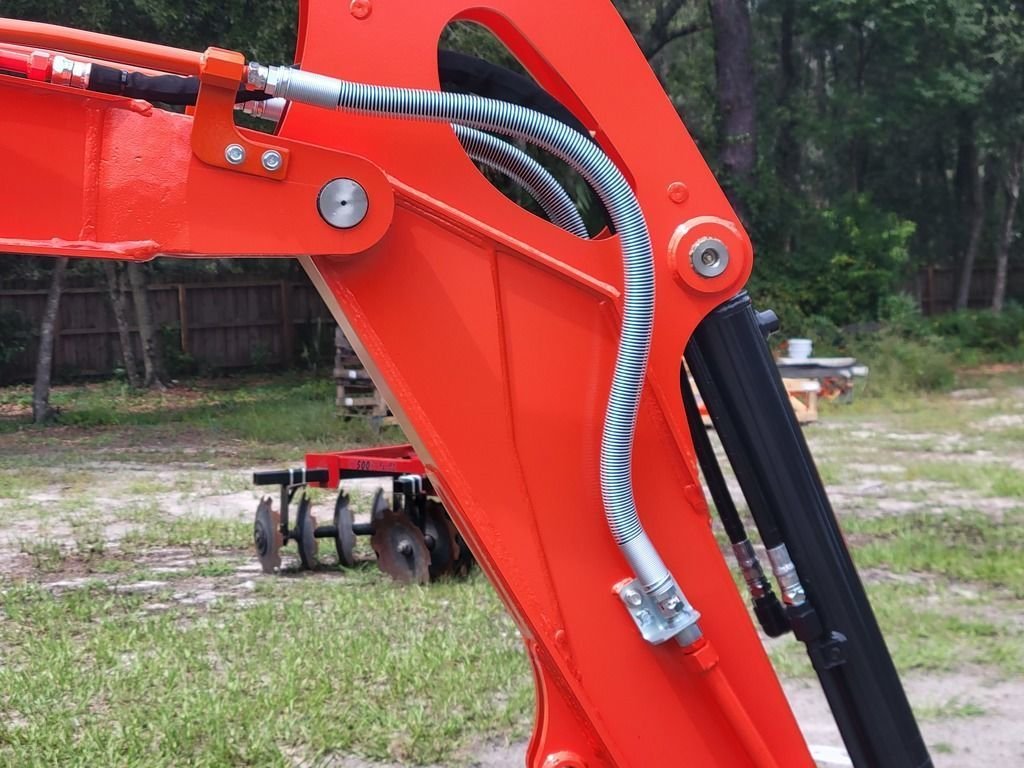

- Protected cylinder hoses
- Steel hood panels
- One-sided engine maintenance
- Wide hood openings for easy access to engine and other vital components
AUXILIARY
- Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before
- Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers
