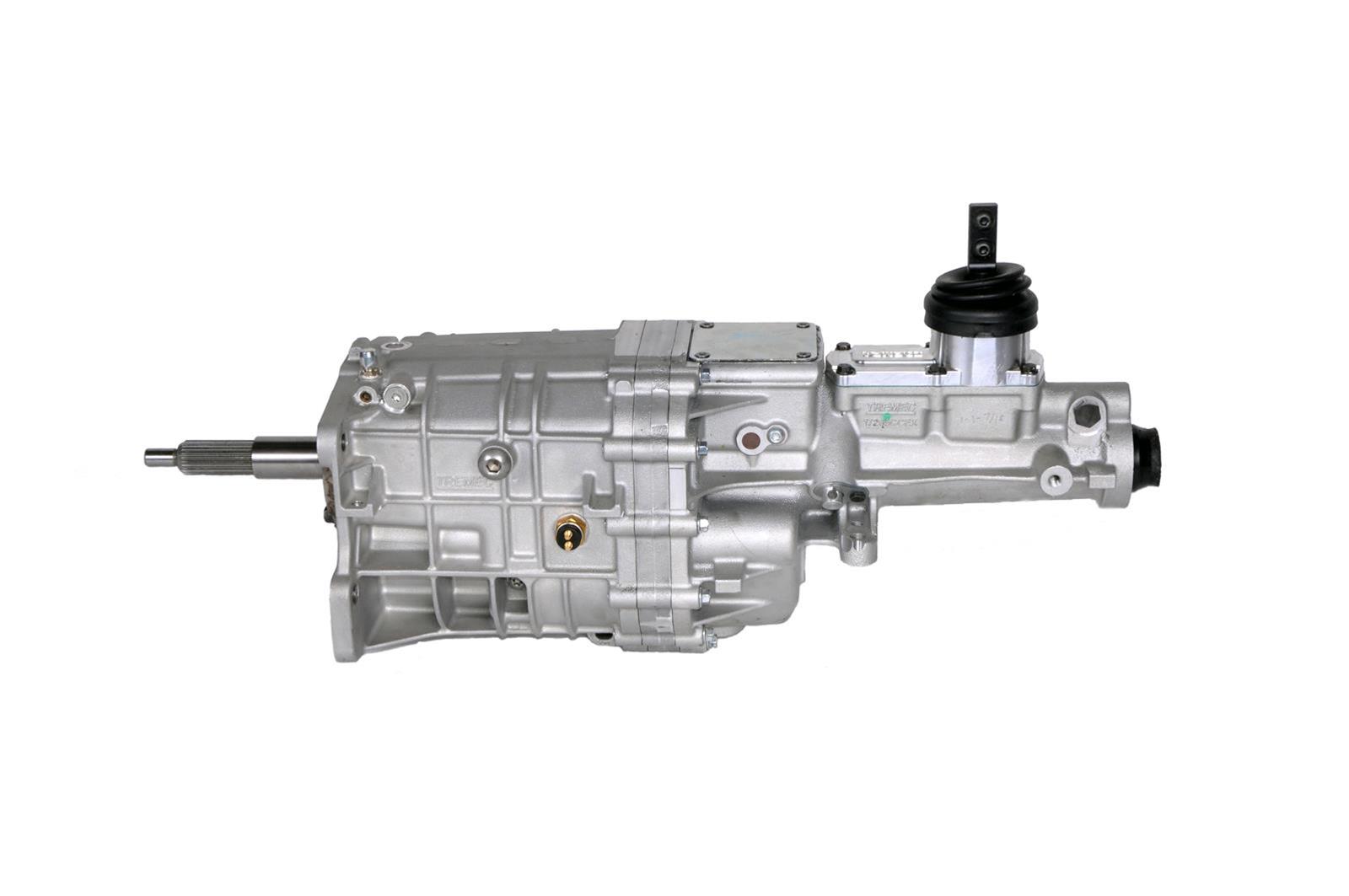

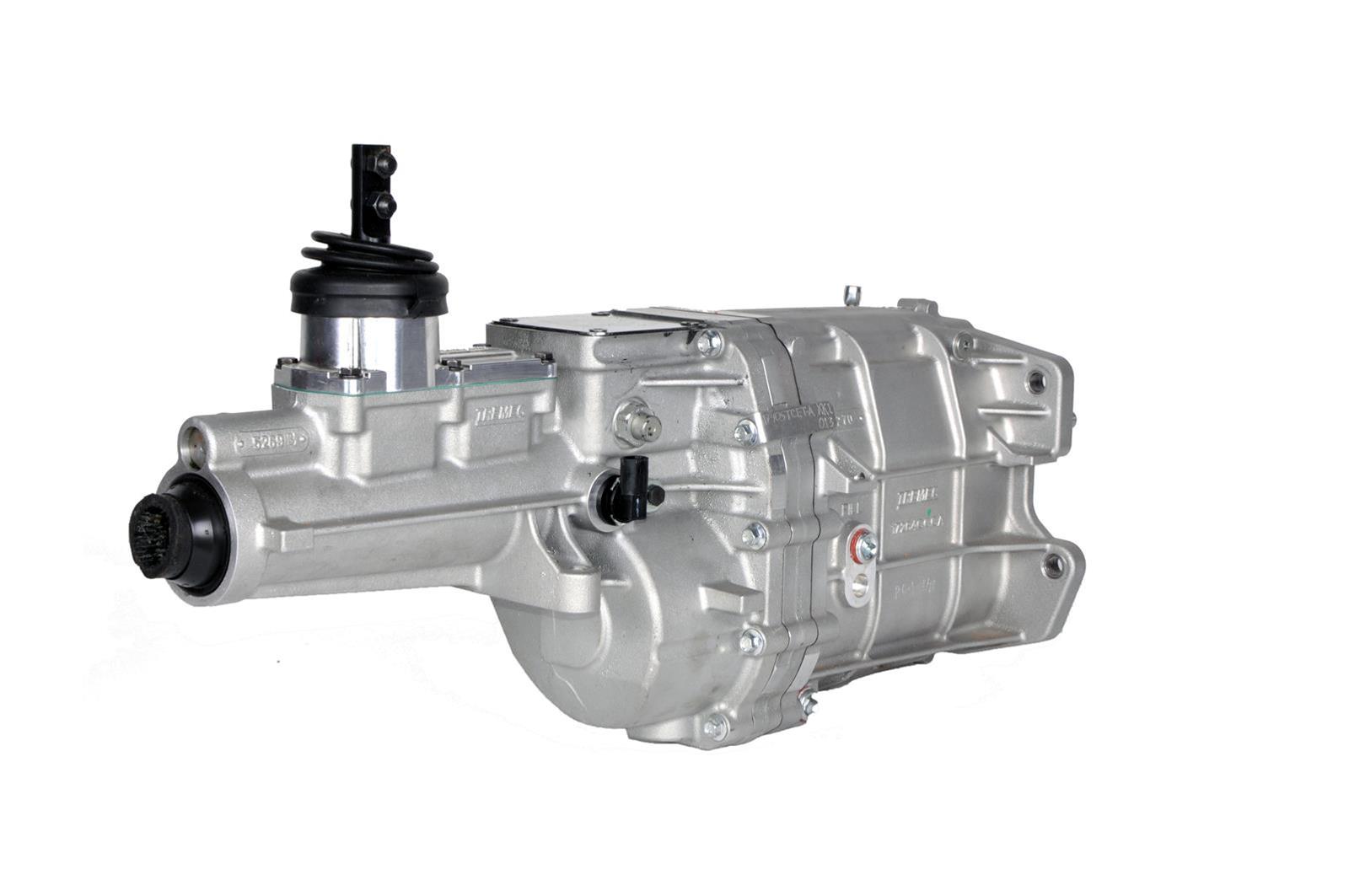

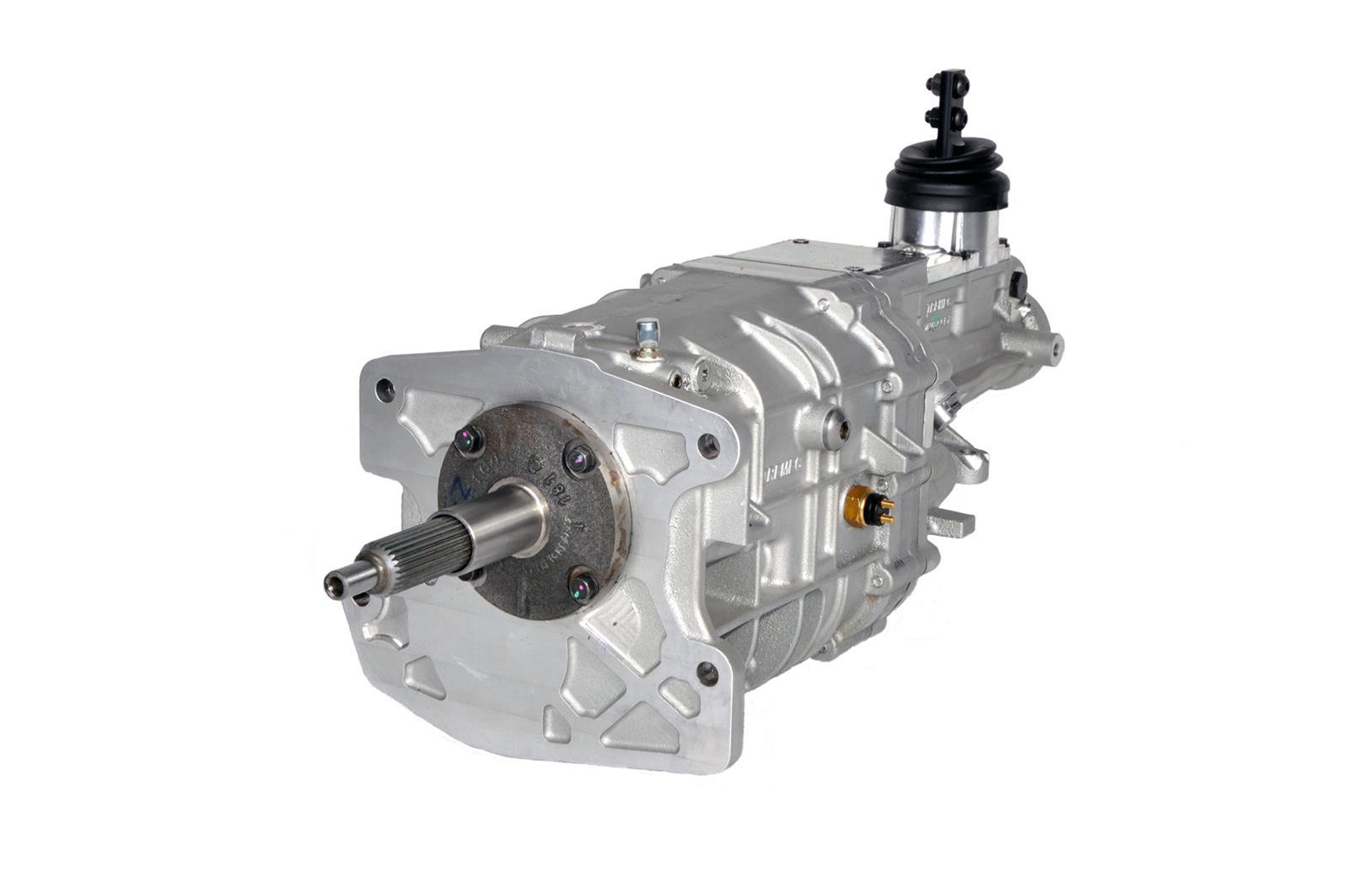

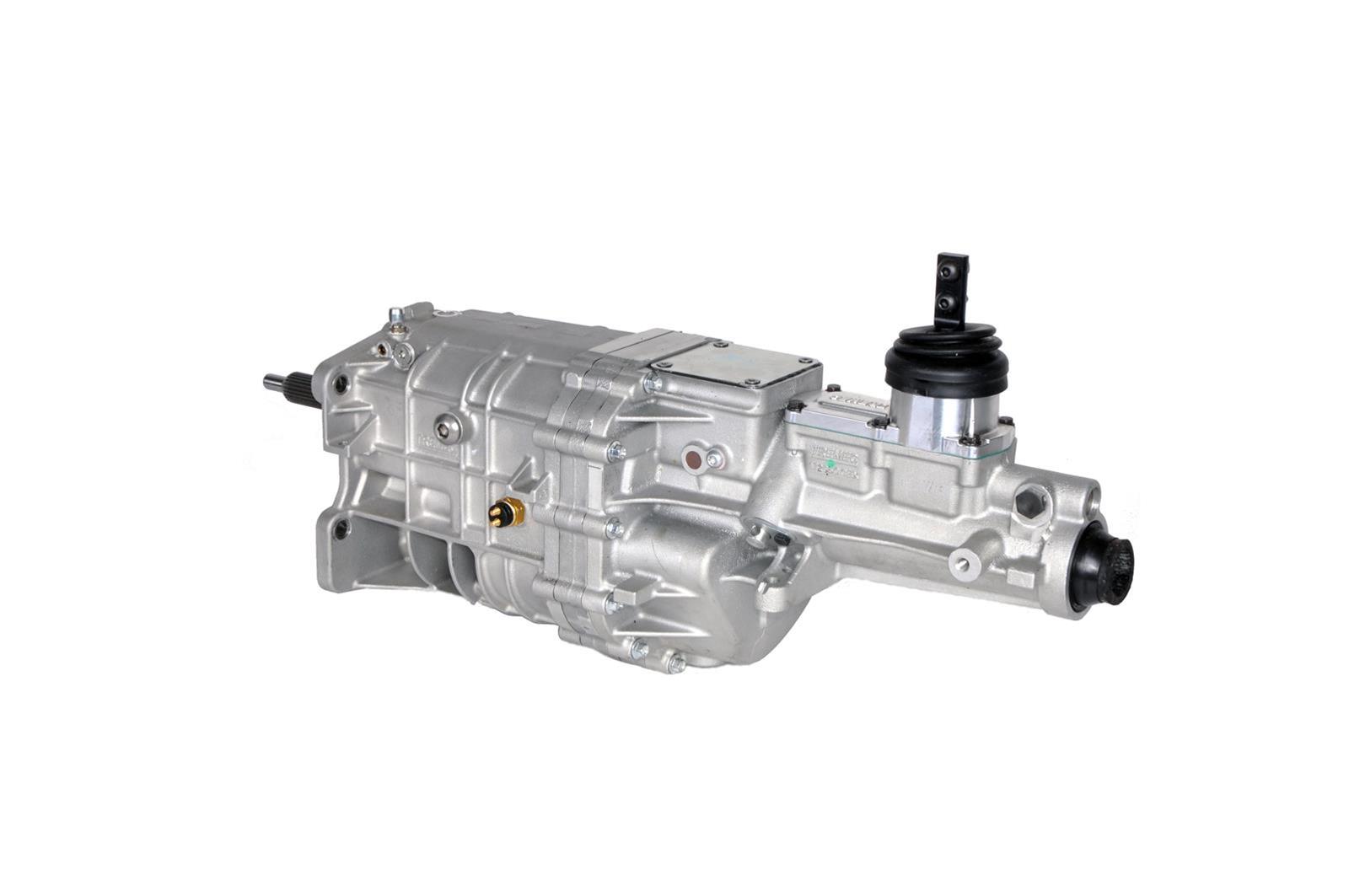

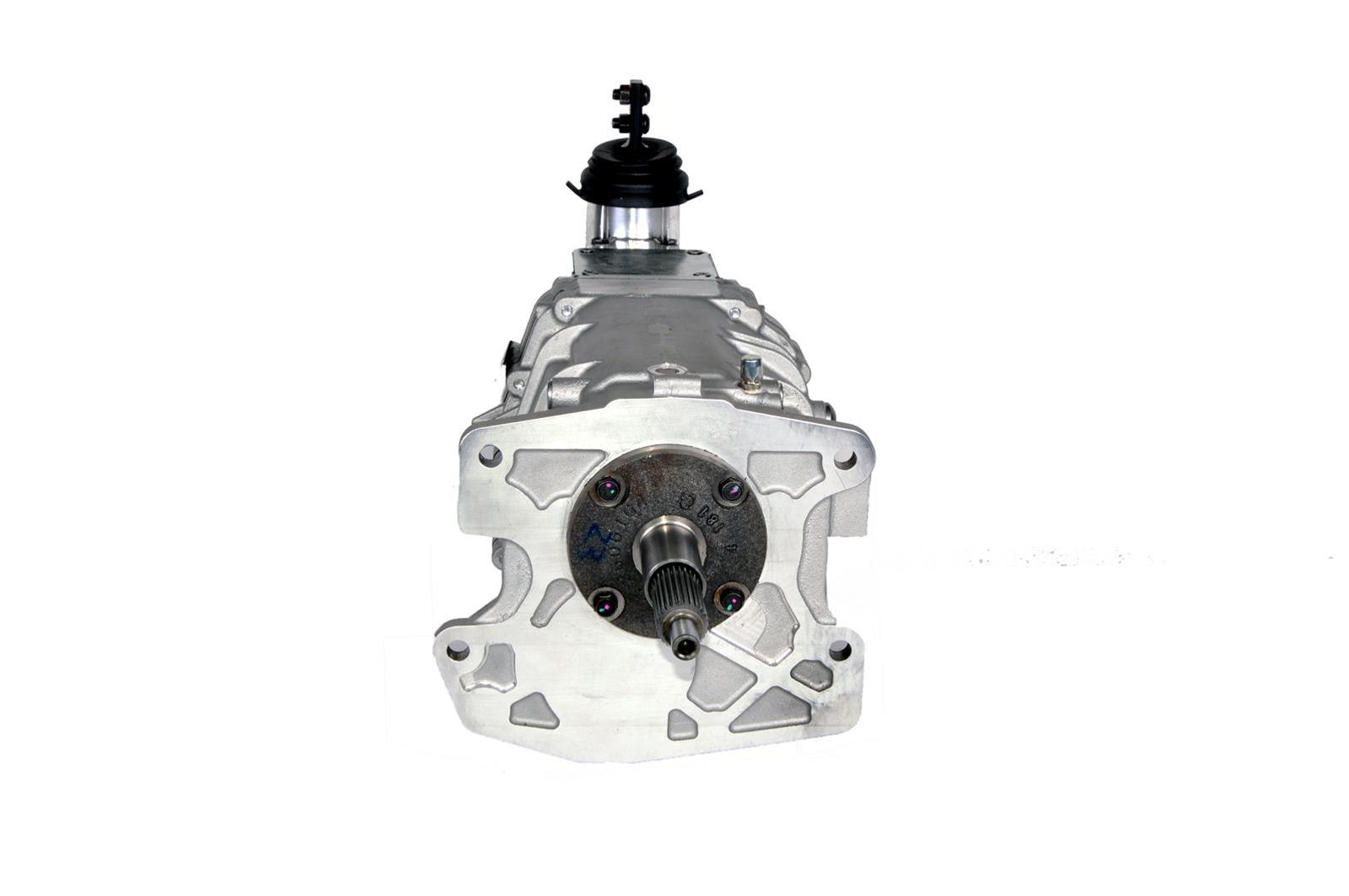

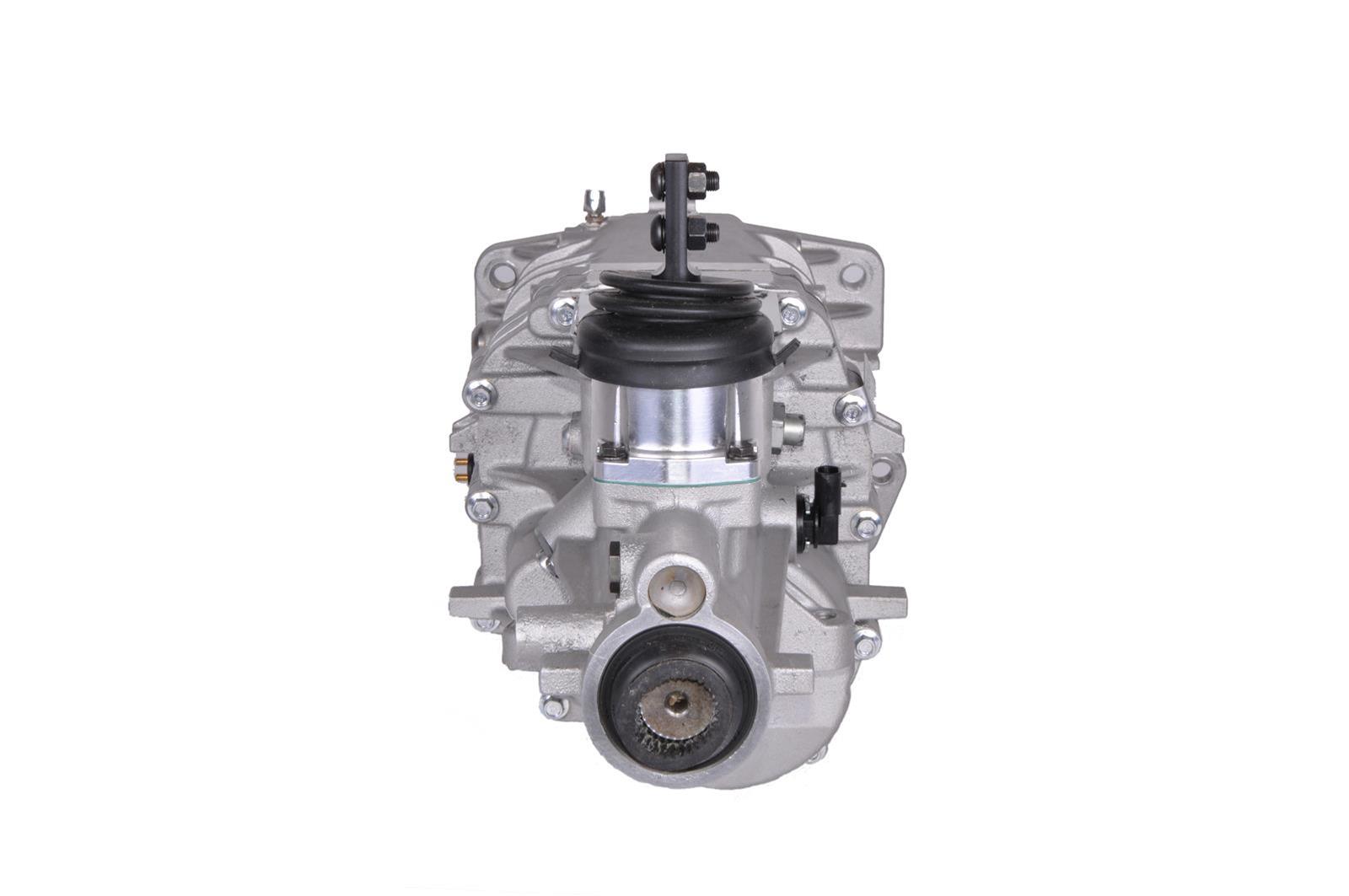

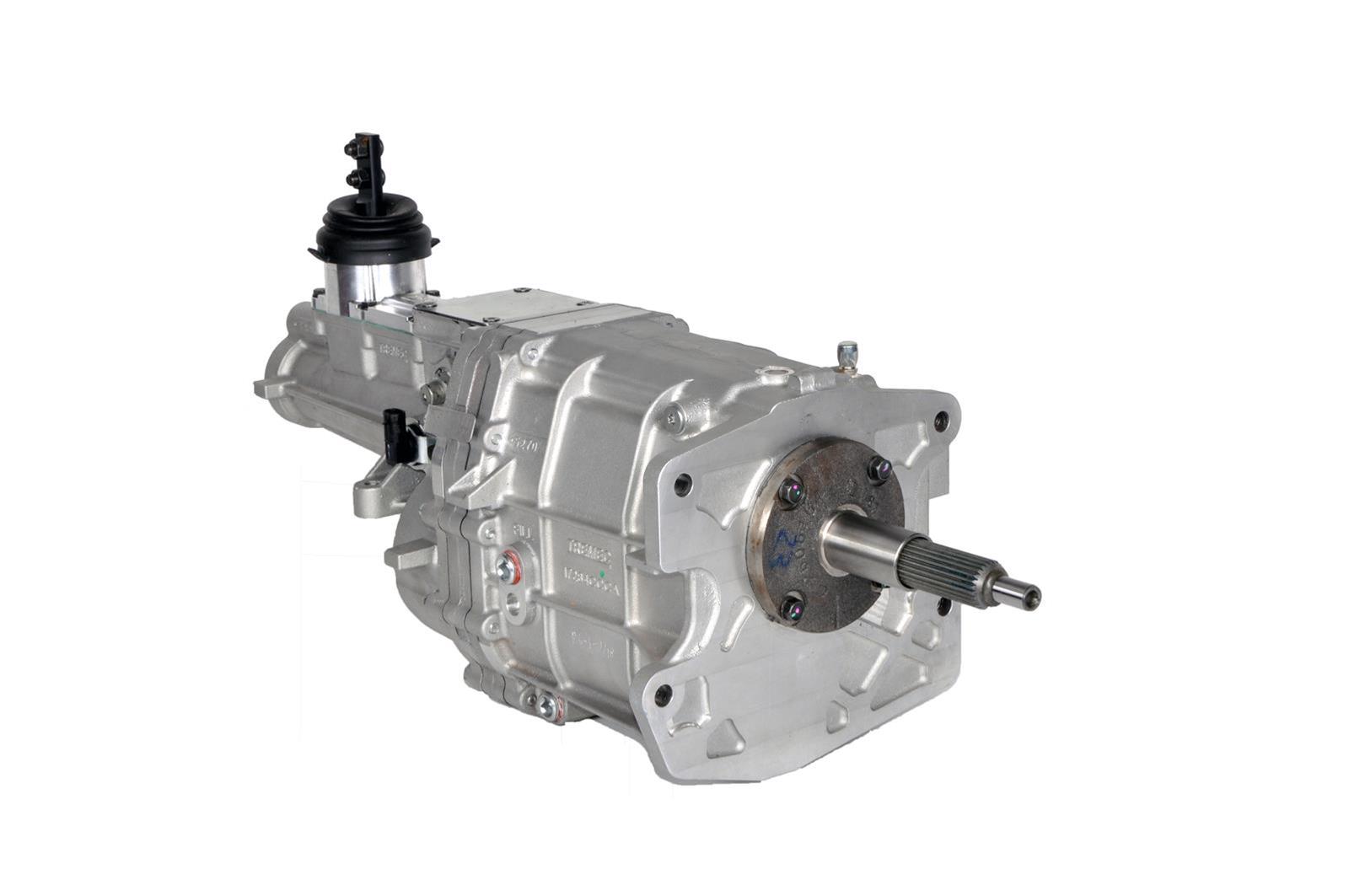

Tremec TKX Manual Transmissions
Tremec offers a variety of TKX 5-speed manual transmission for select GM and Ford applications. Each model features different gear ratios. Order the transmission best suited for your vehicle.
General product details:
* Bolts up to a standard GM Muncie bellhousing or use a Quicktime bellhousing
* Input Shaft: 26-Spline (requires 26-spline clutch disk)
* Output Shaft: 31 Spline
* The TKX has 600 lbs.-ft. of torque capacity and is capable of engines speeds of 8,000 rpm with shifts at 7,500 rpm. It is available in multiple gear ratio configurations.
* Designed for multiple applications with three shifter locations. Compact, end-loaded design provides clearance in most transmission tunnels without floor
* Increased case strength with 3-piece aluminum housing provides outstanding structural stiffness (includes main case, intermediate plate and rear extension). Gaskets at all flanges simplifies installation and eliminates fluid
* Superior shift-ability through use of multi-cone synchronizers and hybrid synchronizer rings made of sintered bronze and carbon
* Noise, vibration and harshness (NVH) minimized with gear layout to best control stress All gears supported by caged needle bearings to reduce end play on the gears.
* All gears and shafts made from special grade steel (ASTM 4615), providing increased torque carrying
* Equipped with a high performance short-throw billet aluminum shifter that isolates road noise, while providing clean, crisp
* Robust design with internal 3-rail shift system and steel shift
* Wide gear width increases gear life and torque
* Built-in reverse light switch and cruise control safety
