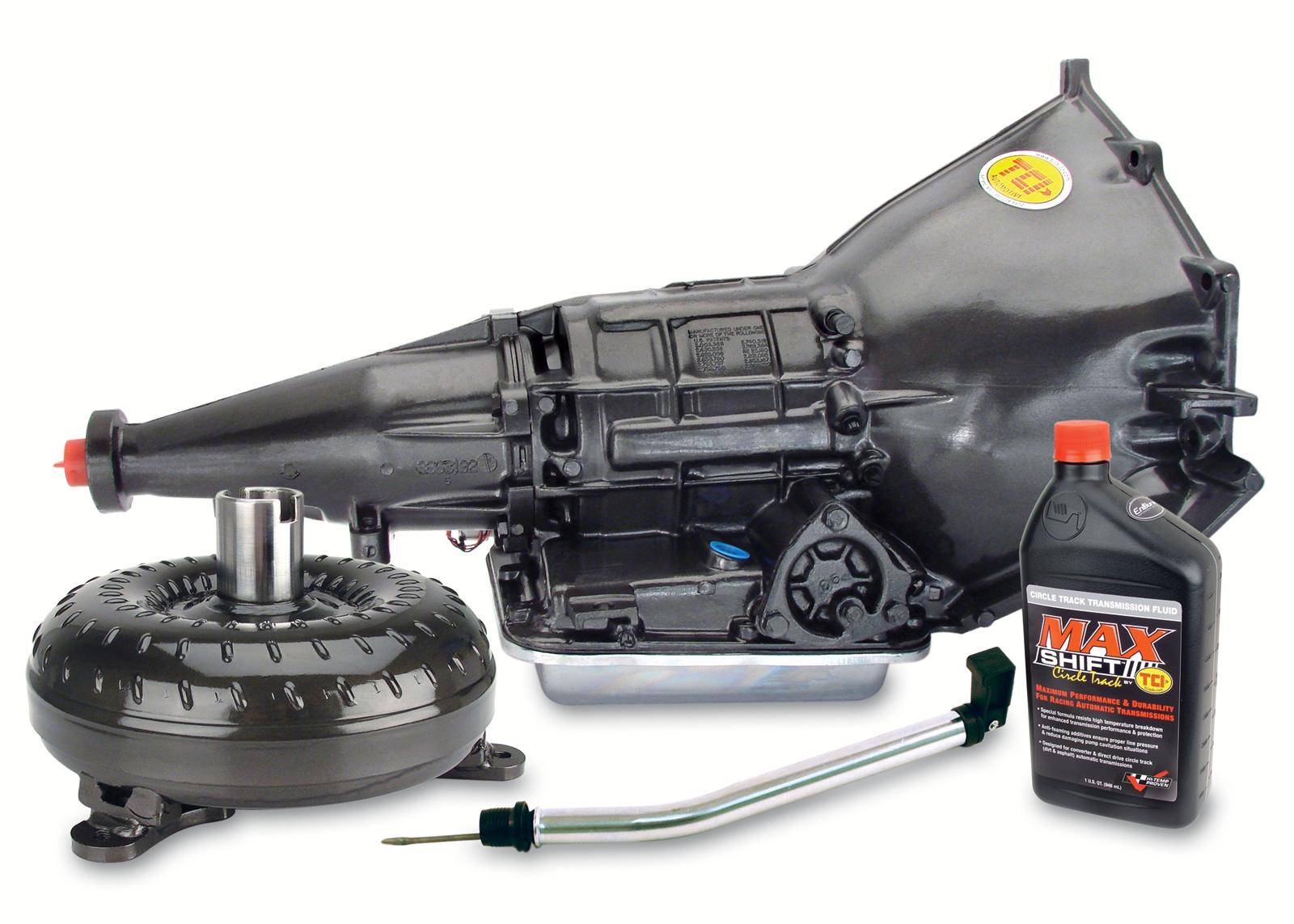

Overview
Brand: TCI Auto
Manufacturer’s Part Number: 742020P1
Part Type: Automatic Transmissions
Product Line: TCI Circlematic Transmissions
Summit Racing Part Number: TCI-742020P1
UPC: 788120046527
Number of Gears: 2
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Reverse
Valve Body Style: Full manual
Torque Converter Included: Yes
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Advertised Flash Stall Rating: Direct drive
Trans-Brake Included: No
Lockup Compatible: No
Transmission Pan Material: Aluminum
Tailshaft Length (in.): 11.250 in.
Yoke Style: Slip-on
Input Spline Quantity: 17
First Gear Ratio (Automatic Transmissions): 1.82
Clutch Hub: Steel
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: Yes
Dipstick Included: Yes
Remanufactured: Yes
Quantity: Sold individually.
Notes: Clutchless style. Low gear only.
TCI Circlematic Transmissions
TCI Circlematic automatic transmissions are great for oval track use. However, despite the sound of their name, they also can be used for performance marine applications. All transmissions feature high performance clutches, a steel clutch hub, and a modified planetary gear set that will work with the latest rear suspensions. Many specialty combinations are available.
