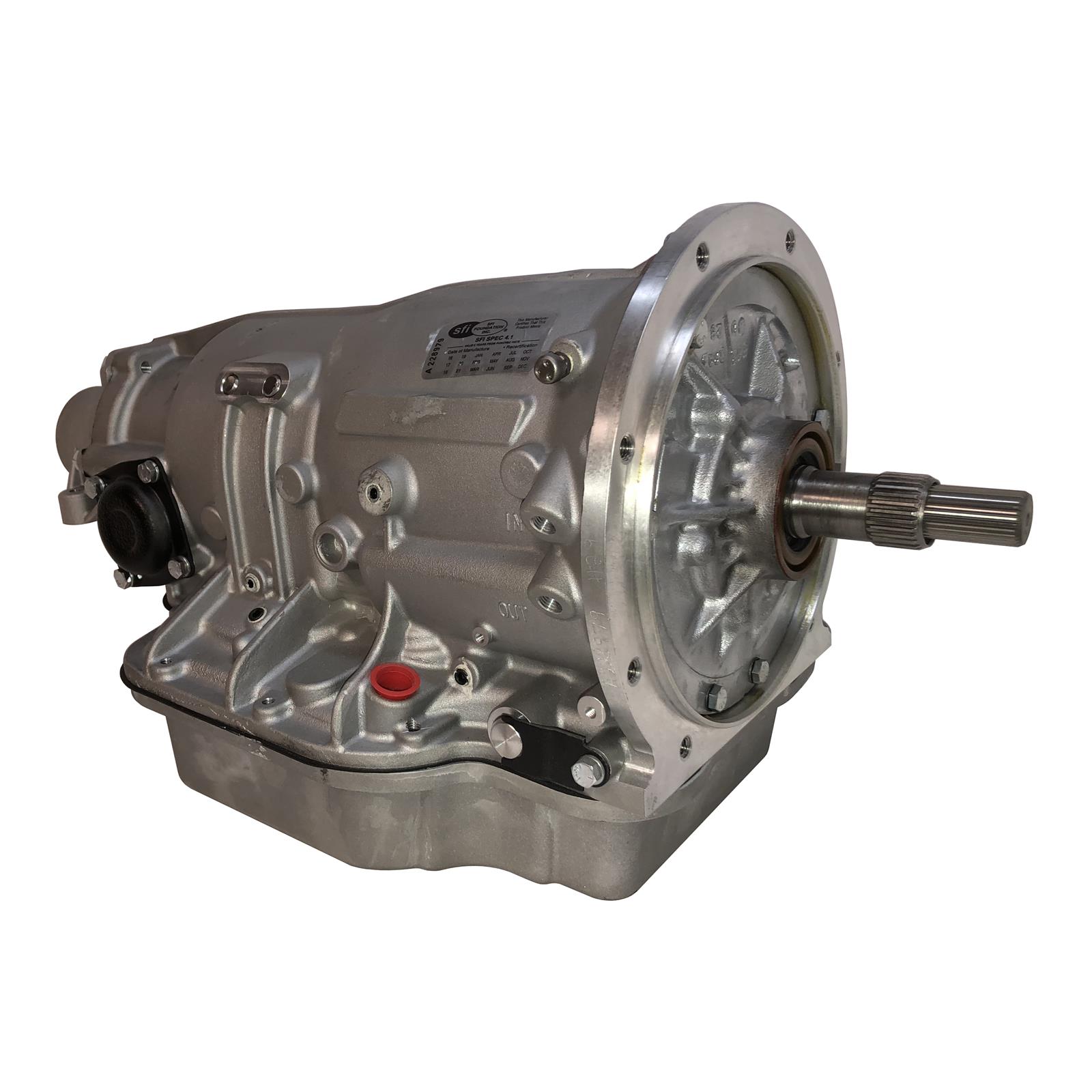

Overview
Brand: Summit Racing
Manufacturer’s Part Number: SUM-700380-SFI
Part Type: Automatic Transmissions
Product Line: Summit Racing™ Performance Transmissions
Summit Racing Part Number: SUM-700380-SFI
UPC: 190861257375
Number of Gears: 3
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Reverse
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 1,300
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: Yes
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Tailshaft Length (in.): 4.000 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: 4340 steel
Input Shaft Style: TH350/400
First Gear Ratio (Automatic Transmissions): 2.48
Clutch Hub: Billet Steel
Transmission Case Style: Aftermarket
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
SFI Rating: SFI 4.1
Remanufactured: Yes
Quantity: Sold individually.
Notes: Features a billet aluminum internal solenoid transbrake, Pro-Mod 36 Drum/Sprag, direct drum modified for instant transbrake release, clutch packs, and unit end play clearanced for “low drag” friction free performance. Requires the SUM-700406 SFI 30.1 aftermarket bellhousing.
Summit Racing™ Performance Transmissions
Think you have to drain every last penny from your bank account to get a quality transmission? Think again. Our Summit Racing™ performance transmissions have been manufactured with all-new, high performance components. Features include a high-volume pump, performance clutches and steels, a recalibrated full manual trans-brake valve body, heavy-duty sun shell, deep aluminum pan, and high-quality seals and gaskets. You get all these quality upgrades, plus reliable performance from Summit Racing™ performance transmissions.
