Brand: Performance Automatic
Manufacturer’s Part Number: PASS26108
Part Type: Automatic Transmissions
Product Line: Performance Automatic C4 Coyote Drag Pack Transmission Systems
Summit Racing Part Number: PMA-PASS26108
UPC: 887753178251
Number of Gears: 3
Bellhousing Bolt Pattern Manufacturer: Ford
Transmission Shift Pattern: Reverse
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 1,000
Torque Converter Included: Yes
Flexplate Included: Yes
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Torque Converter Diameter (in.): 10.000 in.
Advertised Flash Stall Rating: 3,000 rpm
Trans-Brake Included: Yes
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Input Spline Quantity: 26
First Gear Ratio (Automatic Transmissions): 2.46
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Black
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: Yes
SFI Rating: SFI 29.1
Remanufactured: Yes
Quantity: Sold as a kit.
Notes: Designed to fit Ford Modular 5.0L Coyote engines. Recommended for applications with 1,000 horsepower or less.

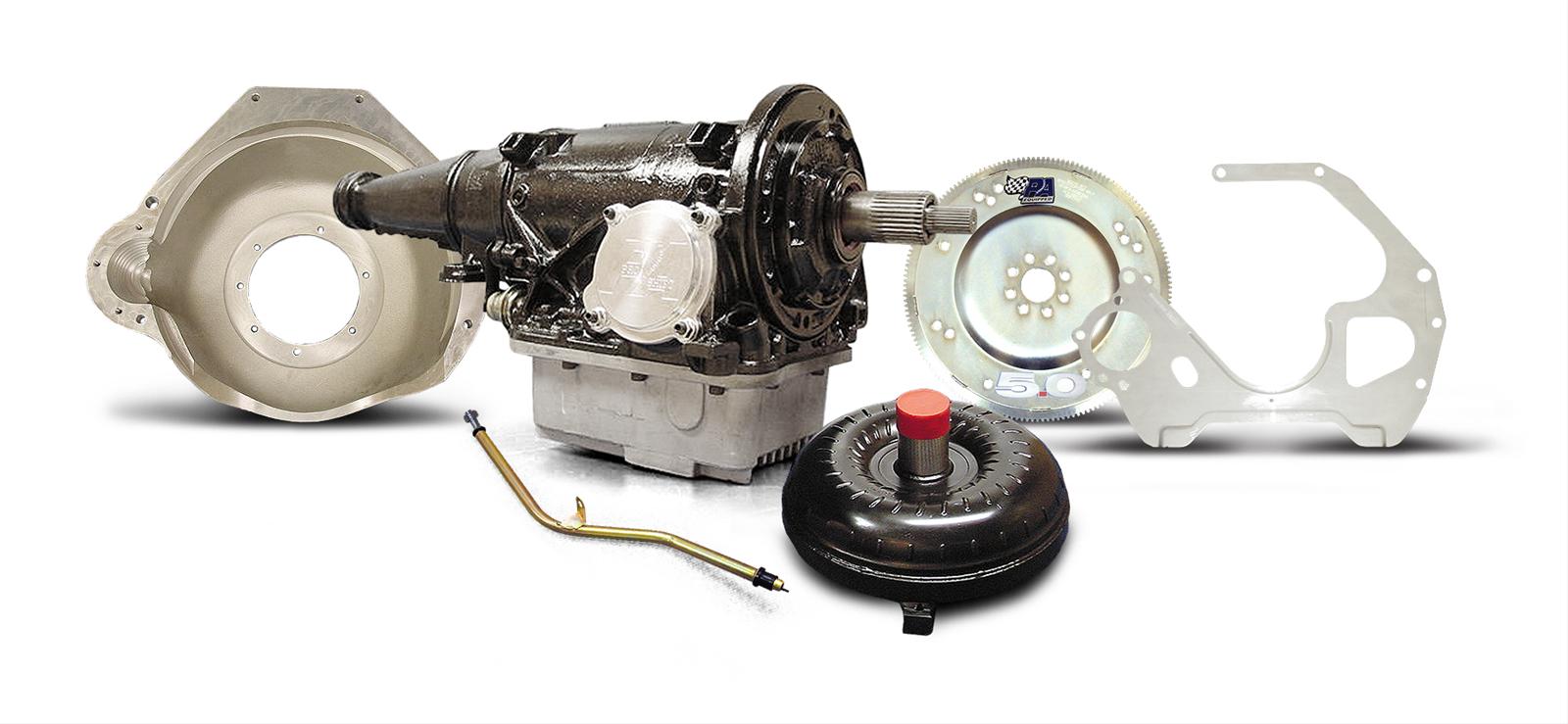

Performance Automatic C4 Coyote Drag Pack transmission systems are designed to complement Ford’s New 5.0 Coyote engine. Performance Automatic starts off with their C4 Super Comp transmission, which is rated 1,000 horsepower, and have a lifetime warranty and add their SFI Pro Fit bellhousing. Performance Automatic also includes their SFI certified Coyote flexplate, matching block plate, lock top dipstick and filler tube, bellhousing and flexplate bolts. Completing the systems is a 10 in. Pro Launch torque converter custom designed to enhance the unique performance characteristics of the Coyote engine and is built to your specs with anti-ballooning plates and a billet cover. The Performance Automatic C4 Coyote Drag Pack transmission systems use a combination of the highest quality parts and are created to be a direct bolt up. Accepted in many NHRA, IHRA, NMRA and NMCA classes (check sanctioning bodies for specific details) these systems will provide you with performance, consistency, and reliability that you are looking for.
