Brand: FTI Performance
Manufacturer’s Part Number: PPG5.5M
Part Type: Automatic Transmissions
Product Line: FTI Performance Pro Powerglide Level 5.5 Transmissions
Summit Racing Part Number: FTI-PPG55M
UPC: 887753818447
Number of Gears: 2
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 2,200
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: Yes
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Tailshaft Length (in.): 11.250 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: Vasco
Input Shaft Style: TH350/400
First Gear Ratio (Automatic Transmissions): 1.80
Clutch Hub: Billet Steel
Transmission Case Style: Aftermarket
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
SFI Rating: SFI 4.1/ 30.1
Remanufactured: No
Quantity: Sold individually.
Notes: Input shaft is a ring-less design. Also includes a 300M output shaft.

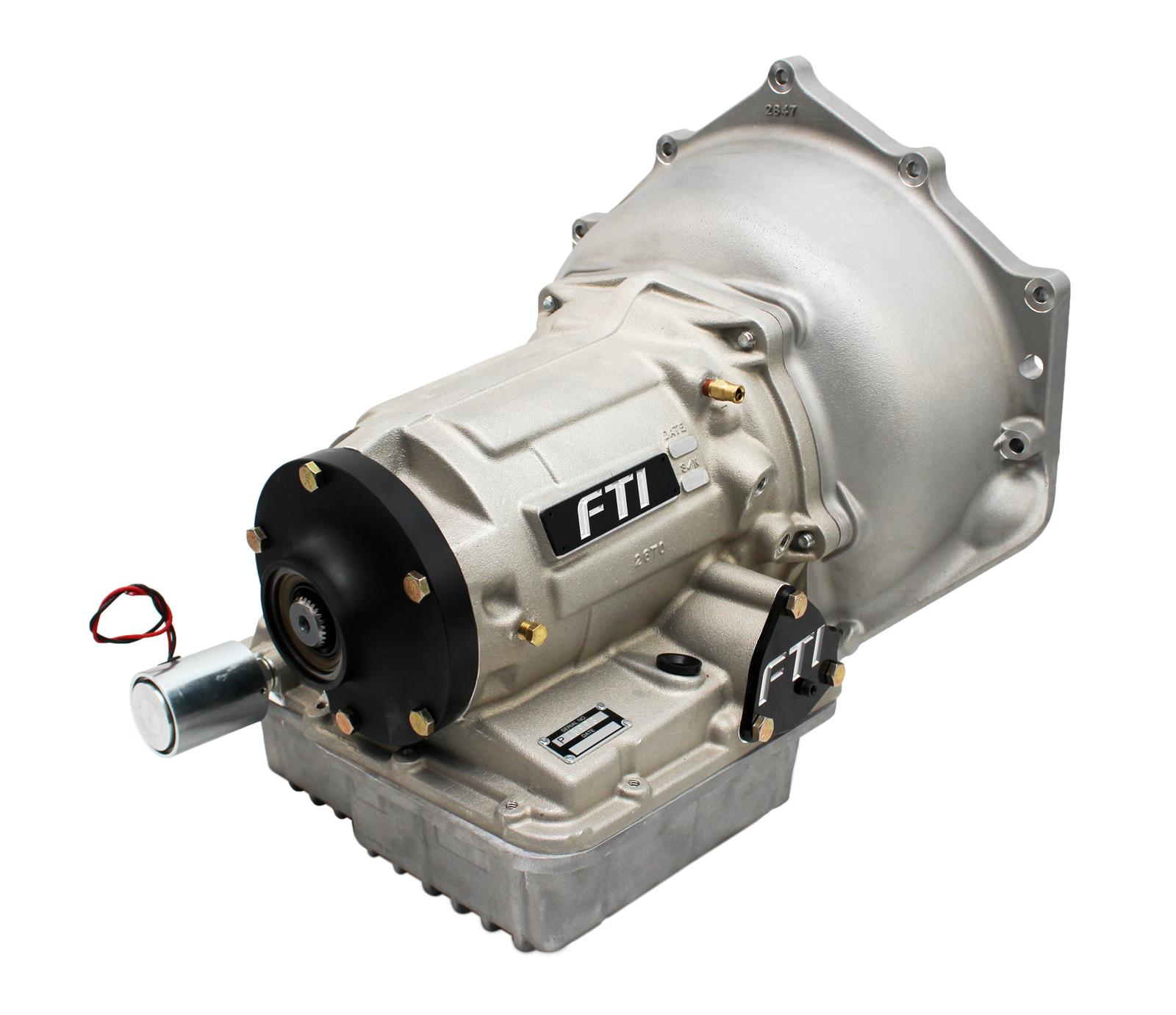

Delivering big power for racers, FTI Performance Pro Powerglide Level 5.5 transmissions are an unbreakable unit. Equipped with the FTI creatively designed spiral springs and valve body, these units don’t creep when the brake is set—a must in today’s racing world. With in-house machining, the transmissions are hand-assembled by one builder, and every clearance is set to exacting tolerances. FTI automatic transmissions house the greatest advances in Powerglide racing technology, and are designed to withstand the rigors of today’s high performance engines in an extremely demanding environment.
