Overview
Brand: FTI Performance
Manufacturer’s Part Number: BPG3S
Part Type: Automatic Transmissions
Product Line: FTI Performance Bracket Series Powerglide Level 3 Transmissions
Summit Racing Part Number: FTI-BPG3S
UPC: 887753809339
Number of Gears: 2
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 1,000
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: Yes
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Tailshaft Length (in.): 1.625 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: 300M
Input Shaft Style: TH350/400
First Gear Ratio (Automatic Transmissions): 1.80
Clutch Hub: Billet Steel
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Black
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
Remanufactured: Yes
Quantity: Sold individually.
Notes: Includes a hardened 4340 output shaft.

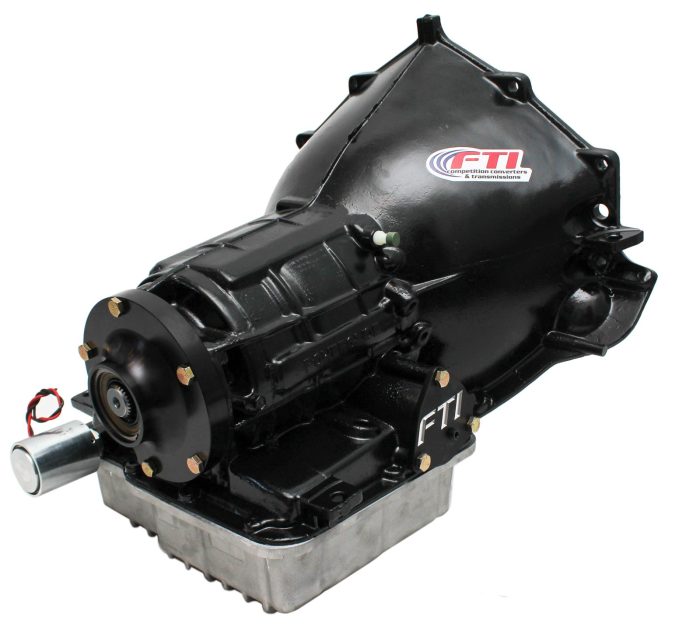

FTI Performance Bracket Series Powerglide Level 3 Transmissions
When every shift can potentially cost a fraction of time, FTI Performance Bracket Series Powerglide Level 3 transmissions are a godsend. These strong, 2-speed units are rated up to 1,000 hp for powerful street and bracket racing. They’re available in standard length and shorty versions. For strength and reliability, equip your ride with an FTI Bracket Series Powerglide Level 3 transmission.
